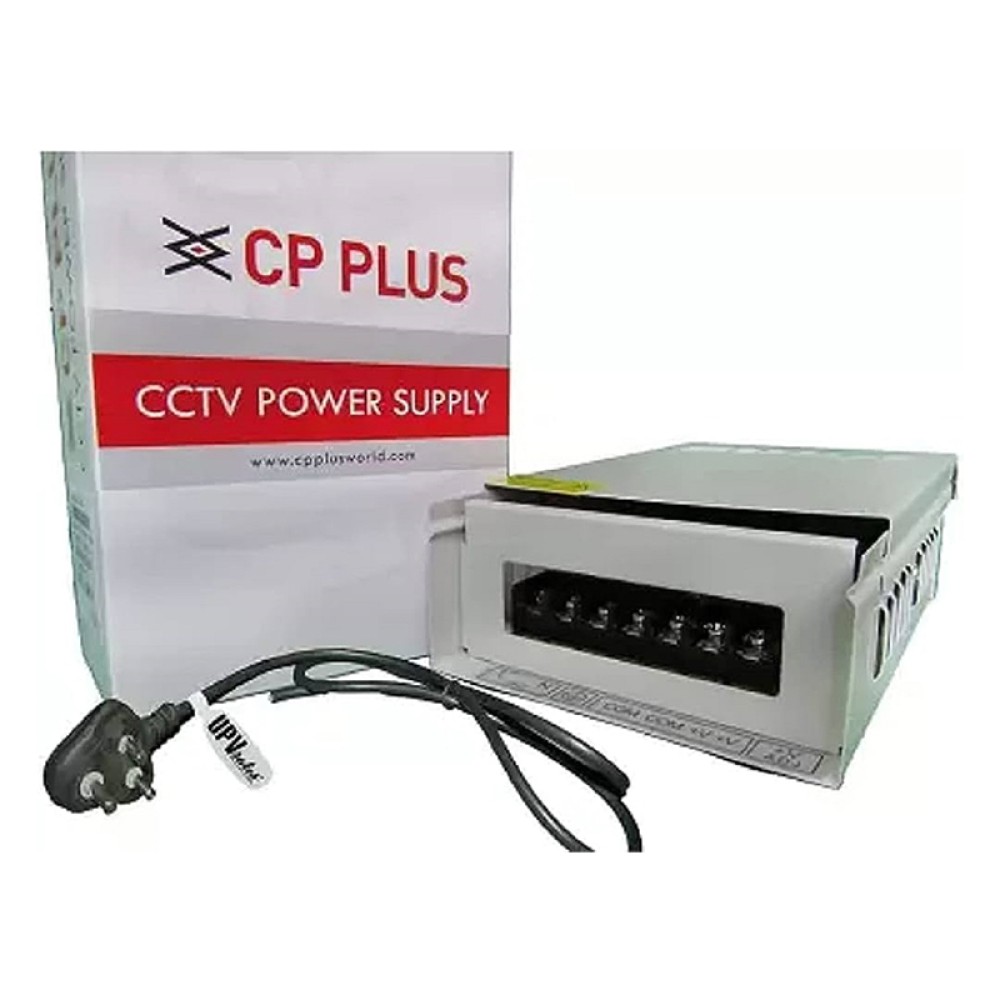

CP PLUS CCTV Metal Body Power Supply 12V 20Amp For 16Ch With UPV Power Cable - CP-DPS-MD200-12D Combo Pack Security Camera (16 Channel)

Technical Description Input Voltage : 108~264VAC Output Voltage : 12V DC Current Range : 0~20A Rated Power : 240W Ripple & Noise (Max) : 100mVp-p Voltage Adj. Range : 11.4~13.2V Line Regulation : ?1.0% Voltage Tolerance : ?2.0% Load Regulation : ?5.0% Setup Rise time : 600ms? 30ms at full load Hold Up Time (Typ.) : 13ms at full load Temperature Coefficient : ?0.03%/?C (0~50?C) Inrush Current (Typ.) : 20A/115VAC 40A/230VAC Leakage Current : <2mA/240VAC Efficiency (Typ.) : 84% AC Current (Typ.) : 5A/115VAC 3A/230VAC Frequency Range : 47~63HZ Over Load : 110~200% Rated Output Power Protection Type : Shut Down O/P, Re-Power on to Recover Isolation Resistance : I/P-O/P, I/P-FC, O/P-FC:100M Ohms / 500 VDC / 25C/ 70% RH Vibration : 10~500Hz, 3G 10Min./1 Cycle, 60min Each Along X? Y? Z axes Store Temperature : -20~+85?C, 10~95%RH Working Humidity : 20-90% RH Non-condensing Working Temperature : -20~+40?C Dimension : 196mm(L) X 114mm(W) X 55mm(H) Withstand Voltage : I/P-O/P : 1.5KVAC I/P-FC: 1.5KVAC O/P-FC:0.5KVAC What's in the Box : 1 Nos Power Supply, 1 Nos Power Cable for Input Supply
